Innowalk Pro

An excellent end-effector device, providing full-body robotic therapy in standing with weight-bearing.

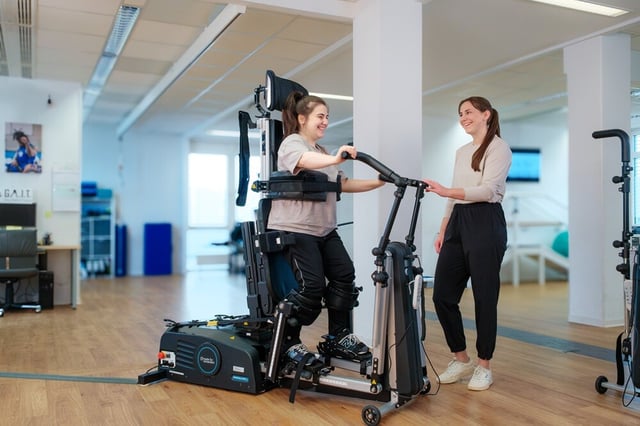

Innowalk_2024_11_web

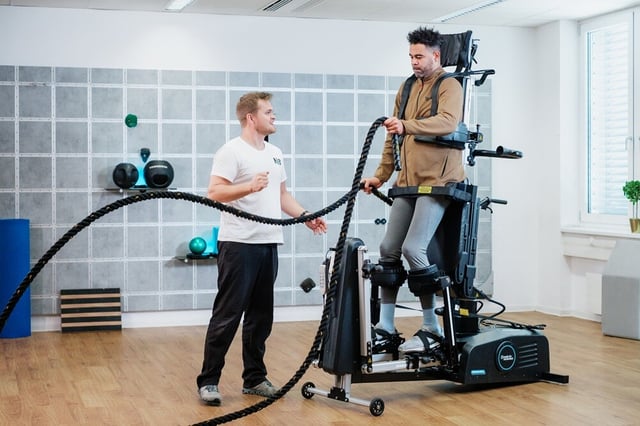

Patient in a clinical setting

Discover how the Innowalk Pro works

The Innowalk Pro stands out as a highly compact end-effector device, delivering comprehensive robotic therapy in a weight-bearing standing position. With a remarkably small footprint of only 2m², it distinguishes itself among robotic therapy devices, making it suitable even for smaller facilities. Key features includes:

  • User-friendly adjustment system
  • Easy accessibility
  • Seamless transition from sitting to standing
  • High comfort
  • Integrated transport system
  • Easy to combine with other therapies
  • Integrated Bluetooth interface



Contact us_Orange

Get in touch

Contact us directly for more product information, price enquiry or a product demo.
Contact us

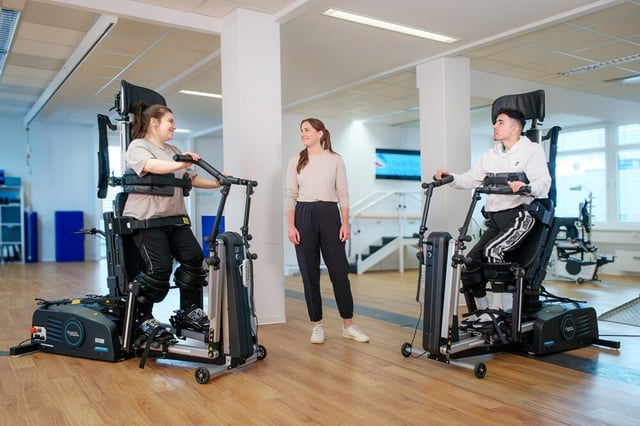

Innowalk_2024_18_Web

Who is the Innowalk Pro intended for?

The combination of great adaptability of the support system and flexible positioning from sitting to standing, enable a broad type of patients to benefit from the use of the Innowalk Pro. This includes children, adolescents and adults undergoing rehabilitation, from the early intervention phase post-trauma to the later chronic phase. Moreover, the Innowalk Pro serves as an outstanding end-effector device for severely affected and complex patients. It can be patients with primary diagnosis such as:

  • Spinal cord injury
  • Stroke
  • Multiple sclerosis
  • Congenital or acquired brain injury
  • Other neurological or neuromuscular conditions

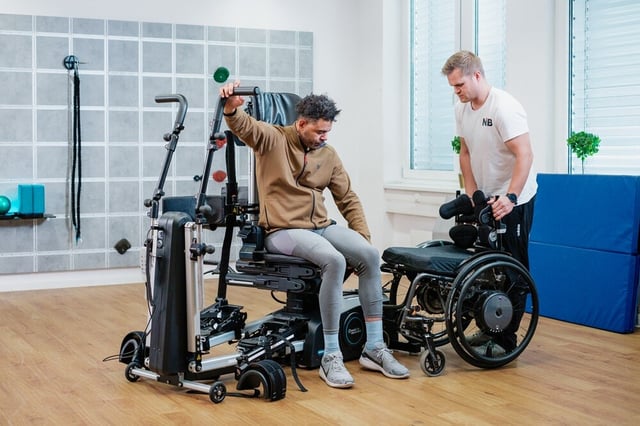

Innowalk Pro_24_web

Where to use the Innowalk Pro?

The Innowalk Pro has a compact design, small footprint, facilitates easy transfer and is easy to use. It has demonstrated its effectiveness as an exercise trainer in various settings, including:

ADVANTAGES FOR THE PATIENT

  • Supports your overall rehabilitation
  • Quick and easy to access
  • Safe standing positioning without a harness
  • Comfortable mobilisation of the whole body
  • Easy adjustable supporting points
  • Effective training with many repetitions
  • Monitor your progress
  • Fun and motivating training method

ADVANTAGES FOR THE CLINIC

  • Small footprint and easy to move
  • Intended for a wide range of primary diagnosis
  • Optimal utilisation of therapy time due to quick and easy set up
  • High training intensity
  • Limited strain on therapist
  • Less disruption of therapy even with complex patients
  • Easy to combine with other therapies
  • Cost effective therapy
  • Flexible payment models

ADVANTAGES FOR SPECIAL SCHOOLS

  • Physical activity promotes health & wellbeing
  • Motivating activity for pupils & staff
  • Promotes inclusion & participation
  • Movement impacts learning ability
  • Promotes positional changes
  • Reduces sedentary behaviours
  • Easy to use

Read mor about Innowalk Pro in a special school setting.

Neresheim_reference-clinic_shape

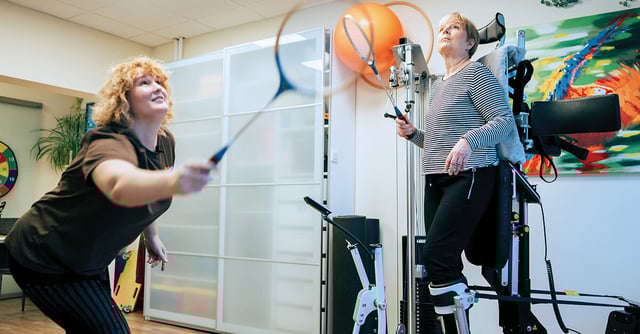

Reference clinics

Learn about experiences of the Innowalk Pro from some of our customers and partners.


Read more
  • Innowalk-Pro_Gen-2_L-dypetset

    The Innowalk Pro stands out as a highly compact robotic rehabilitation trainer offering a multitude of features tailored for use in rehabilitation centres, clinics, therapy facilities and special school settings.

    These facilities are addressing the needs of a wide range of diagnosis and level of functions. For people with moderate to severe disabilities it is a challenge to meet these demands without affordable and sufficient equipment.  In addition, they often experience lack of time resources.

  • Product size User height User weight
    Innowalk Pro Medium 120-165 cm Max. 80 kg
    Innowalk Pro Large 150-200 cm Max. 110 kg




  •  Product size Width Length Height Weight
    Innowalk Pro Medium 77 cm 150 cm 185 cm 154 kg
    Innowalk Pro Large 77 cm 170 cm 225 cm 167 kg

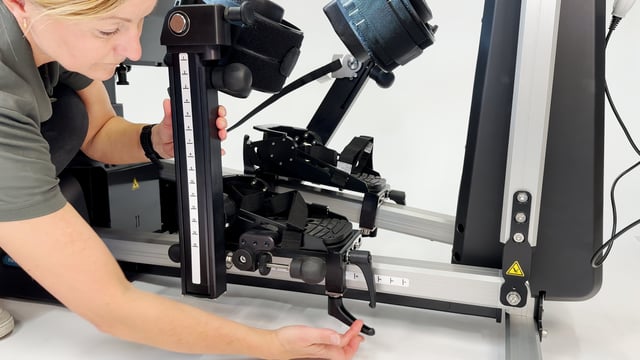

  • Foot plate position_back_forward_78
    The Innowalk Pro is quick, intuitive and easy to set up and use, minimizing the time spent on device adjustments and maximizing therapy time. This way, the Innowalk Pro allows therapists to treat more patients per day
  • Swivel seat_Swing-away

    The Innowalk Pro has a swivel seat with low entry height ensuring a secure and gentle transfer into the device, either independently or with assistance.

    Additionally, swing away leg supports contribute to further simplifying the transfer.

  • Gif_Innowalk-Medium_grey_transparent
    The Innowalk Pro provides flexible positioning with seamless transition from sitting to standing. This can be used to compensate contractures or other medical considerations.  Furthermore, it empowers patients to take a rest in sitting position without the inconvenience of getting out of the device. The flexibility ensures that patients can optimize their training sessions, regardless of physical capacity.
  • Sitting-position-attach-leg-support-and-guide-string-2
    The Innowalk Pro has thick paddings on supporting points and low friction due to no use of harness provide good comfort for the patient in all positions and can be easily adapted for individual needs.
  • Lower-limb-movement

    The Inowalk Pro provides both active and passive limb movements. Patients have the opportunity to actively override the motor and engage their own muscle power. Active movement stimulates muscle activity and is tailored to the patient's abilities and capacity.

  • The Inowalk Pro provides both active and passive limb movements. Patients have the opportunity to actively override the motor and engage their own muscle power. Active movement stimulates muscle activity and is tailored to the patient's abilities and capacity.
  • Innowalk Pro is an extremely compact device with a small footprint, occupying only 2m2 of space, a distinctive feature among robotic therapy devicesThe slim and space-saving design in combination with integrated transport solution enables use in even small facilities or directly within a patient's room for example in an acute hospital setting.
  • DE_Innowalk-Activity-Tracker_Appstore_transparent

    Download the app “Innowalk activity tracker” to a tablet or phone to monitor the number of steps, speed and duration in the device, all presented in an elegant and user-friendly interface. A 30 minutes session is around 2000 steps (65 RPM).

    Download in Apple Store

  • Emergency-Brake_2
    Innowalk Pro has an emergency seat lowering mechanism that can be use if the device loses external power or the remote control does not work.  The emergency mechanism allows you to manually lower the seat to sitting position.
  • Armhandles

    Arm movement handles are easy to attach  and adjust to individual needs. It allow arm movement in combination with lower body movements, which enhances whole body activity in standing.

  • Tray

    The tray is easy to attach and can be adjusted in height and angle. It can be used to support hands and arms for more stability and can also be utilized for various activities.

  • Shoulder-strap

    The shoulder straps supports upper body and are easily attached to the chest support and back of the column.

    Shoulder straps are included in the standard configuration.

  • Hand-Fixation gloves

    Can be attached to the patient's hand for fixation when grip function is lacking.

    Hand fixation gloves are included in the standard configuration.

  • The build up soles can be placed on the footplates to compensate for leg length discrepancy.

    Build up soles are included in the standard configuration.

  • Neck-collar

    The Neck collar provides support of the head in a natural position while sitting, standing, and during transfers. It provides the necessary support, without depriving an individual of full head control.

    The Neck collar is included in the standard configuration.

  • Here you find the Innowalk Pro brochure
  • We are more than happy to send you a user manual on request. Contact us here and we will send you what you need.

  • Access the traning module here
